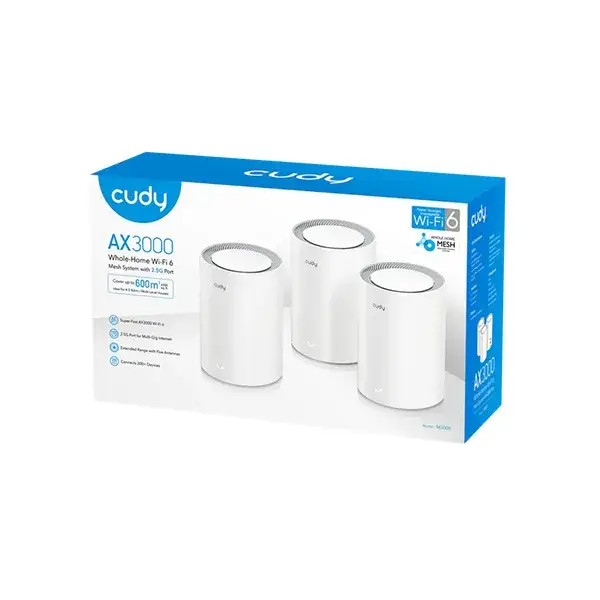

Cudy M3000 (White) 3-Pack AX3000 2.5G Dual Band Wi-Fi 6 Mesh System Router

DDR/RAM:
256 MB (2 Gbit) DDR3

FEM or PA/LNA:
– 5 GHz: 3× Internal
– 2.4 GHz: 2× Internal

Beamforming: True
Range Performance: Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance: Two wooden walls with thickness < 10 cm (4”)
One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”)

Indoor Coverage Reference:
2 Pack: 200 m² (2100 sq ft)
3 Pack: 270 m² (2900 sq ft)

2-Pack: 55×54.5×35.3 cm
21.65×21.46×13.9 inches

3-Pack: 53.6×40×28.7 cm
21.1×15.75×11.3 inches

LED:
– System
– Speed/Link/ACT of Ethernet Port

Physical Buttons:
– WPS Button
– Reset Button

Power Input: DC Jack

Power Adapter:
– Input: 100 ~ 240 V, 50/60 Hz AC
– Output: 12V 1A DC

Max Power Consumption (W): 11.5W
Idle Power Consumption (W): 4.2W

Dimension:
Φ110×154.5 mm
Φ4.33×6.08 inches

Product Weight: 360 g (12.7 oz.)

Wi-Fi Efficiency:
– OFDMA
– MU-MIMO
– BSS Color

Max Capacity: 512
Recommended Client Upper Limit: 200
Max Wi-Fi Channel Width: 160 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz
WPS: True

Mesh: Cudy Mesh

Mesh Backhaul:
– Wireless Backhaul
– Wired Backhaul

Multi-Band Backhaul: True

WAN Mode:
– DHCP
– Static IP
– PPPOE
– PPTP
– L2TP

Internet Failover Sequence:
– WAN
– WISP

DHCP:
– Address Reservation
– DHCP Client List
– Server

IP Versions: IPv4/IPv6

IPv6 Protocols:
– Relay
– Dynamic (SLAAC/DHCPv6)
– Static (Fixed IP)
– Passthrough
– 464XLAT
– MAP-E
– DS-Lite

IPTV/VLAN:
– Bridge
– Tag VLAN
– VoIP VLAN
– IPTV VLAN

TTL Customization:
– Extend
– Spoof
– Custom

IGMP:
– IGMP Proxy
– IGMP Snooping

Forwarding:
– Port Forwarding
– Port Triggering
– UPnP
– DMZ

Firewall:
– SPI Firewall
– DoS Protection
– Block PING

Application Layer Gateway:
– IPSec Passthrough
– L2TP Passthrough
– PPTP Passthrough
– FTP Passthrough
– TFTP Passthrough
– H323 Passthrough
– SIP Passthrough
– RTSP Passthrough

DNS Options:
– DNS over TLS
– Manual DNS
– Rebind Protection
– Override Clients’ DNS

DNS over TLS Providers:
– Cloudflare
– Google
– Quad9
– Custom

Wake on LAN: True
Online Detection: True

All Devices Management:
– Wi-Fi Time Schedule
– MAC Filter
– IP/MAC Binding

Per-Device Management:
– Internet On/Off
– VPN On/Off
– Online Time Schedule
– Device Rename
– Content Management
-Domain Filter
IP Filter

Local Control Method
– Config Web Page
– App Control
Remote Control Method:
– Config Page via HTTPS
– App Control
– TR069/TR098/TR111/TR143/TR181

Firmware Upgrade:
– Local Update
– App (Over the Air)
– Online Update

Reliability:
– Timed Reboot
– Backup and Restore

Diagnostic Tools
– Diagnosis
– Ping
– Traceroute
– NSLookup
– System Log

Languages:
– English
– Bengali
– Catalan
– Czech
– German
– Greek
– Spanish
– French
– Hebrew
– Croatian
– Hungarian
– Italian
– Japanese
– Khmer
– Korean
– Dutch
– Norwegian
– Polish
– Portuguese
– Romanian
– Russian
– Slovak
– Swedish
– Thai
– Turkish
– Ukrainian
– Vietnamese
– Simplified Chinese
– Traditional Chinese

Charts:
– Mesh Topology
– Internet Speed
– WISP Speed
– Wi-Fi Speed
